The current page：Home > Products > Welding automation > Special customized welding equipment
Products

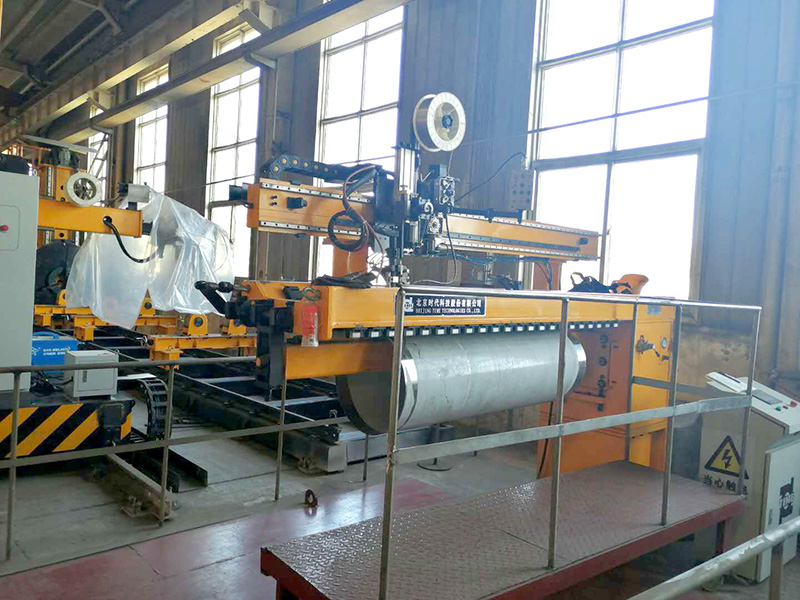

Welding equipment for longitudinal seam

Feature code：
  • Apply to plate welding, outer longitudinal seam welding for small pipes and inner longitudinal seam welding for big pipes.
  • Adapting pneumatic or cylinder compression sevices,  and each set of the copper key can be adjusted independently.
  • One size welding, both sides forming process.
  • Back forced water cooling can control the deformation effectively.
  • Available welding methods: TIG, MAG, SAW etc.
  • Various loading and unloading devices can be customized.
  • Whole digital centralized control system, welding parameters can be set, revised, stored and recalled.


Model

Effective welding length

(mm)

Diameter of workpiece

(mm)

Thickness

(mm)

Moving speed of welding torch

(mm/min)

ZF-500

525

75～730

1～6

50～2000

（Servo speed regulation）

ZF-1000

1125

115～730

ZF-1500

1650

150～730

ZF-2000

2025

180～850

ZF-2500

2550

200～850

Note: The above parameters are for TIME standard product configurations, and can be customized according to the customer’s requirements.
